JPK VACUUM RELAYS JPK-35/073-AP-AHP

  • JPK VACUUM RELAYS JPK-35/073-AP-AHP
  • JPK VACUUM RELAYS JPK-35/073-AP-AHP
  • JPK VACUUM RELAYS JPK-35/073-AP-AHP
Model No.︰JPK-35/073-AP-A
Brand Name︰GTVAC
Country of Origin︰China
Unit Price︰-
Minimum Order︰10 pc
Share on:

 Total 120 Related Items
Prev1617181920Next

Product Description

 With vacuum dielectric and ceramic envelope,type K relays offeranumber of advantages,such as high withstand coltage,small in suze,high speed switching, stable and reiiable properties,etc They may widely be used for controlling and protection circuits in radar,power source,broad casting,radio communication and electronic equipment。

Price Terms︰FOB Wuxi
Specifications︰Specification No JPK-35/073AP Jpk-35/073ahp (thermal conversion) hot
Contact configuration 1C 1C
Test voltage (DC or 50Hz AC peak)
Test Voltage (DC or AC 50Hz Peak)kV twenty-three twenty-three
Rated operating voltage (peak)
RatedOperating
Voltage(Peak) kV DC or AC 50Hz eighteen eighteen
AC2.5MHz twelve ten
AC16MHz ten eight
AC32MHz seven four
Rated carrying current (effective value)
RatedCarrying Voltage(RMS) A DC or AC 50Hz fifty twenty-five
AC2.5MHz
AC16MHz
AC32MHz
Contact resistance (Ω) zero point zero one two zero point zero two five
Contact capacitance (PF) Between open contacts
Beteween Open Contacts zero point five zero point five
Between contact and housing
Open Contacts to Ground one one
Operate time max. (MS) eighteen eighteen
Release time max. (MS) nine nine
Temperature range of temp (℃) - 55~+125 - 55~+125
Shock level, 11ms 1/2sine (peak G's) fifty thirty
Vibration, peak 10g's (Hz) 55~500 55~500
Expected mechanical life( × 106) one one
Nominal weight (g) one hundred and eight one hundred and eight
Coil parameter
Rated voltage DC (V) twenty-four twelve
Maximum pull in voltage max. DC (V) 15-16 eight
Release voltage dropout voltage Min.DC(V) 1-10 0.5-4
Coil resistance (Ω± 10%) one hundred and eighty forty-five
Advantages︰ With vacuum dielectric and ceramic envelope,type K relays offeranumber of advantages,such as high withstand coltage,small in suze,high speed switching, stable and reiiable properties,etc They may widely be used for controlling and protection circuits in radar,power source,broad casting,radio communication and electronic equipment。
Export Markets︰In the control circuit of radar, power supply, broadcasting, radio communication and electronic equipment.
Payment Details︰Delivery upon payment
Min Order︰10
Ship Date︰two weeks later

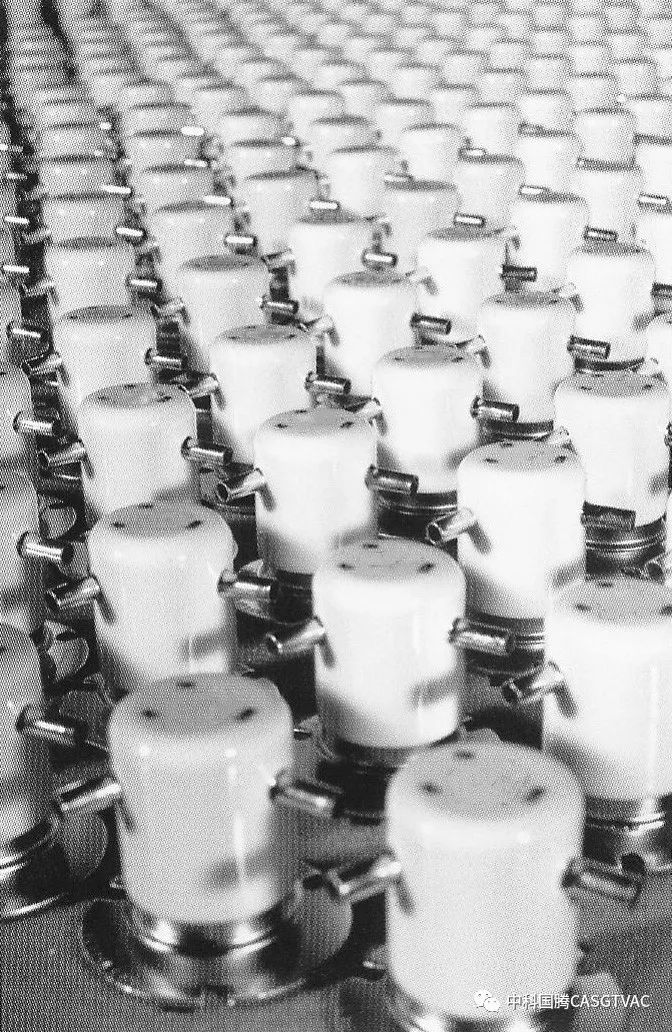

Product Image
