Jpk-18 vacuum relay 15kV

Total 120 Related Items

Product Description

Coil parameter

Nominal voltage

Rated Voltage DC(V) twenty-seven twenty-four

Maximum pull in voltage

Pull-in Voltage Max. DC(V) sixteen sixteen

Minimum release voltage

Dropout Voltage. Min.DC(V) one point five one point five

Coil resistance

Coil Resistance (Ω±10%) two hundred and eighty-five two hundred and twenty-five

Price Terms︰	FOB Wuxi
Specifications︰	Specification No Specification No. JPK-18/016 Contact combination form Contact Configuration 2Z（C） Test voltage (DC or 50Hz AC peak) Test Voltage （DC or AC 50Hz Peak）kV fifteen Rated operating voltage (peak) Rated Operating Voltage(Peak) kV DC or AC 50Hz twelve Rated carrying current (effective value) Continuous Current, Carry( RMS) A DC or AC 50Hz 30(50) Contact resistance (Ω) zero point zero one two Contact capacitance （pf） Between disconnected contacts Beteween Open Contacts one Between contact and housing Open Contacts to Ground two point five Operate time max. (MS) twenty Release time max. (MS) eight Temperature range of temp (℃) - 55~+125 Shock level, 11ms 1/2sine (peak G's) fifteen Vibration, peak 10g's (Hz) 55-2000 Expected mechanical life（ × 106) one Nominal weight (g) one hundred and sixty
Advantages︰	Coil parameter Nominal voltage Rated Voltage DC(V) twenty-seven twenty-four Maximum pull in voltage Pull-in Voltage Max. DC(V) sixteen sixteen Minimum release voltage Dropout Voltage. Min.DC(V) one point five one point five Coil resistance Coil Resistance (Ω±10%) two hundred and eighty-five two hundred and twenty-five
Export Markets︰	In the control circuit of radar, power supply, broadcasting, radio communication and electronic equipment.
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later

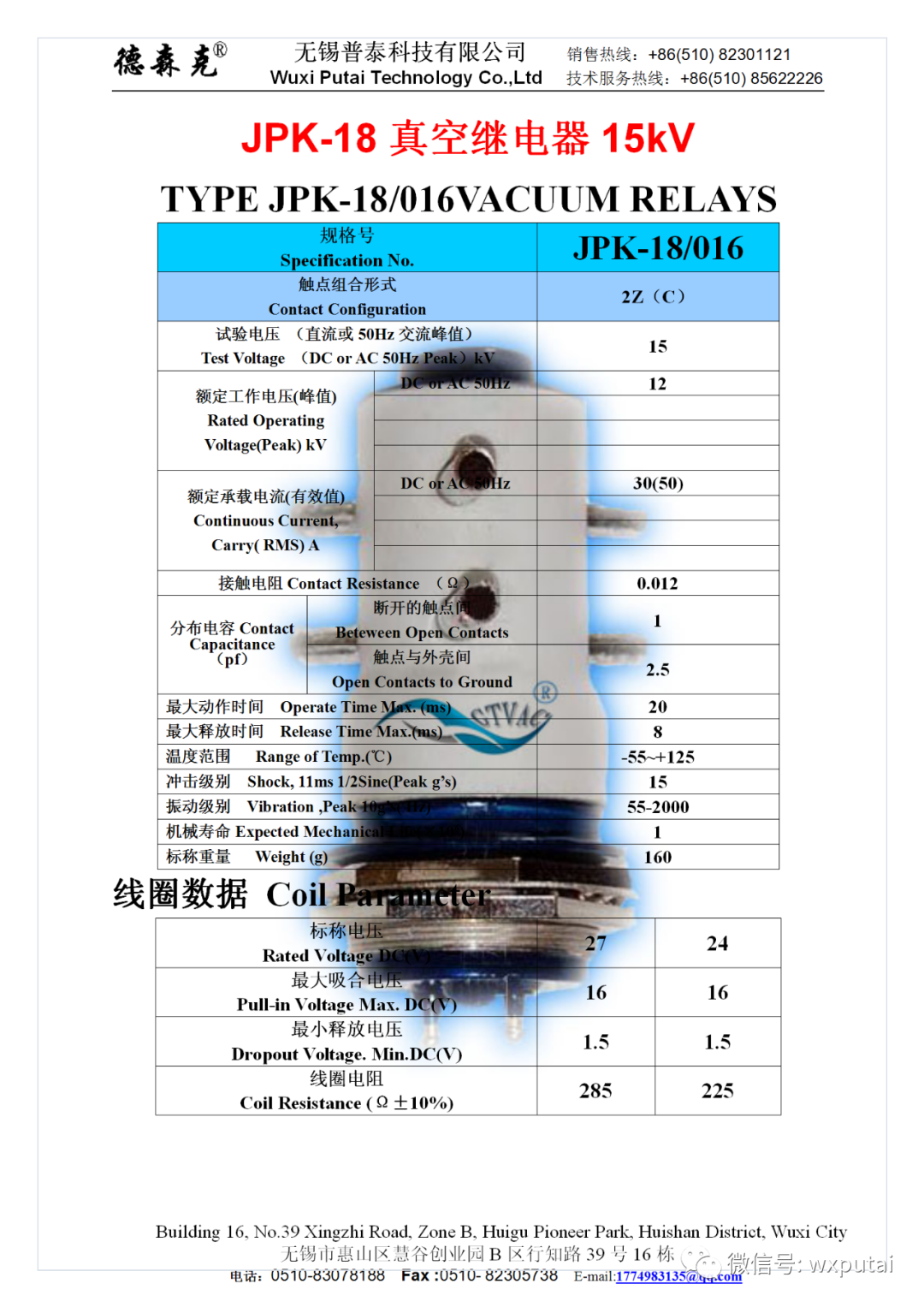

Product Image
