GTS15 solid state relay

Model No.︰	GTS15固态继电器
Brand Name︰	GTVAC
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	1 pc

Total 120 Related Items

Product Description

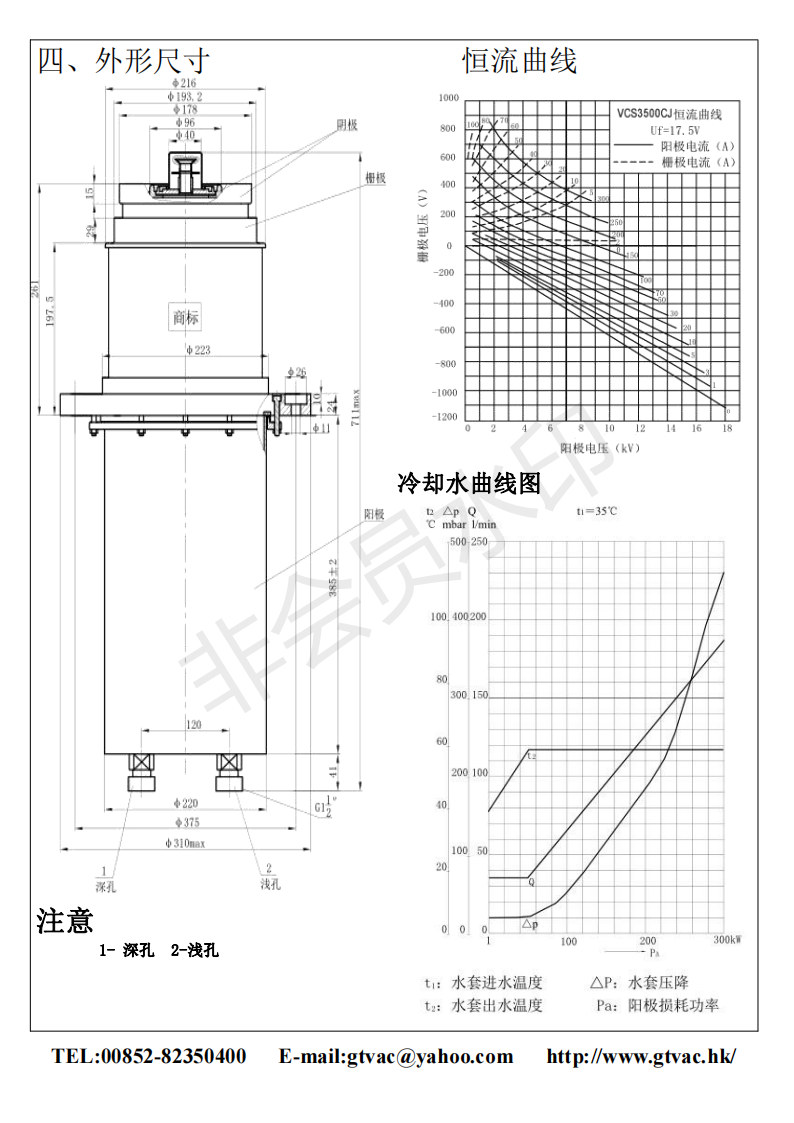

Vcs3500cj is a high-power cermet triode, which adopts the integral structure of electronic tube and water jacket, thorium tungsten cathode and super evaporative cooling anode. The maximum anode dissipation power can reach 300kW, and the maximum operating frequency is 30MHz. The tube is suitable for oscillation in industrial high-frequency heating equipment. It can be interchanged with rs3500cj electronic tube of Thales abroad.

Price Terms︰	FOB Wuxi
Specifications︰	INPUT(Ta=25℃) Control voltage range(DC input) 3VDC to 32VDC(Without LED) 4VDC to 32VDC(With LED) Control voltage range(AC input) 85VAC to 132VAC(110V input) 175VAC to 264VAC(220V input) 19.2VAC to 28.8VAC(24V input) Must operate voltage(DC input) 3VDC (Without LED) 4VDC (With LED) Must operate voltage(AC input) 85VAC (110V input) 175VAC (220V input) 19.2VAC (24V input) Must release voltage(DC input) 1.0VDC Must release voltage(AC input) 10VAC(110V,220V input) 2VAC(24V input) Max. input current 25mA(DC input) 15mA(AC input) Max.reverse protection voltage (DC input) -32VDC OUTPUT(Ta=25℃) Type □-□A10□ □-□A15□ □-□A20□ □-□A25□ □-□A40□ Load voltage range (at 47 to 63HZ) □-240A□□ 48VAC to 280VAC □-380A□□ 48VAC \ to 440VAC Max. transient overvoltage □-240A□□ 600Vpk □-380A□□ 800Vpk Load current range(A) 0.1 to10 0.1 to 15 0.1 to 20 0.1 to 25 0.1 to 40 Max. I2t for fusing(10ms,A2’s) 78 144 312 312 880 Max. surge current (10ms) 100Apk 150Apk 200Apk 250Apk 400Apk Max. leakage current 5mA Max. on-state voltage drop 1.5Vr.m.s. Max. turn-on time Zero-cross turn on：1/2 cycle+1ms Random turn on：1ms Max.turn-off time 1/2 cycle+1ms Min. off-state dv/dt 200V/μs Min. power factor 0.5
Advantages︰	Dielectric strength 4000V Photo isolation Removable finger proof cover available Built-in snubber Zero cross or random turn-on ● TRIAC AC output ● Panel mount ● DC or AC control ● With LED indicator or not ● Environmental friendly product (RoHS compliant)
Export Markets︰	The tube is suitable for oscillation in industrial high-frequency heating equipment. It can be interchanged with rs3500cj electronic tube of Thales abroad.
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	Two weeks later
