Product Catalog

GT70 HV Relays75kV

Model No.︰	GT70
Brand Name︰	GT70 HV Relays75kV
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	10 pc

Total 120 Related Items

Product Description

Product features:
GT70A、GT70B
It is packaged in a volume of about 6.3 cubic inches (100 cubic centimeters), and the withstand voltage reaches 70kv, minimizing the volume of your system.
Charge SF6 gas for capacitor discharge without X-ray.
The tinned high voltage resistant lead design is convenient for connection.
There is no operation bounce.
GT70C
The performance is the same as that of gt70a and gt70b.
Single pole double throw is used for polarity conversion or power on.

Price Terms︰	FOB Wuxi
Specifications︰	Product parameters Product model Company GT70A GT70B GT70C Contact code A B C contact form SPST SPST SPDT Maximum test voltage (leakage current not exceeding 15 μ A. DC or 60Hz) kVPeak seventy-five seventy-five seventy-five Maximum operating voltage, contact to base (leakage current shall not exceed 15 μ A) dcor60Hz kVPeak seventy seventy seventy 60Hz effective value kV thirty thirty thirty 16MHz kVPeak - - 32MHz kVPeak - - Maximum continuous load current dcor60Hz Amps ten ten ten Coil breakdown voltage (60Hz, AC effective value) V five hundred five hundred five hundred Contact capacitance Between open contacts pF - - Contact to ground pF - - Maximum contact resistance (1a, 28vdc) ohms two two two Maximum working time ms fifteen fifteen fifteen Maximum release time ms fifteen fifteen fifteen Mechanical life second 1 million 1 million 1 million Nominal weight g(oz) 336(12) 336(12) 336(12) Vibration frequency (sinusoidal, 55~500 Hz, peak) G's ten ten ten Impact level (11ms, half sine wave, peak) G's twenty twenty twenty Operating ambient temperature range °C - 55～+85 - 55～+85 - 55～+85 The contact resistance test condition of the inflation relay is 28vdc, 1a.
Advantages︰	Product features: GT70A、GT70B It is packaged in a volume of about 6.3 cubic inches (100 cubic centimeters), and the withstand voltage reaches 70kv, minimizing the volume of your system. Charge SF6 gas for capacitor discharge without X-ray. The tinned high voltage resistant lead design is convenient for connection. There is no operation bounce. GT70C The performance is the same as that of gt70a and gt70b. Single pole double throw is used for polarity conversion or power on.
Export Markets︰	Switching power supply, capacitor discharge
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later

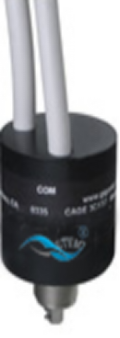

Product Image
