GT62 HV Relays 30kV

Model No.︰	GT62
Brand Name︰	GT62 HV Relays
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	10 pc

Total 120 Related Items

Product Description

Features
this type of relay is a lead 25kV relay, which is easy to install. It has the advantages of high voltage resistance, small size, fast breaking speed, stable and reliable performance. It is widely used in the control circuits of radar, power supply, broadcasting, radio communication and electronic equipment. At the same time, it can also provide sulfur hexafluoride gas for capacitive discharge.
Consult factory for load switch applications that meet or exceed mil-r-83725

Price Terms︰	FOB Wuxi

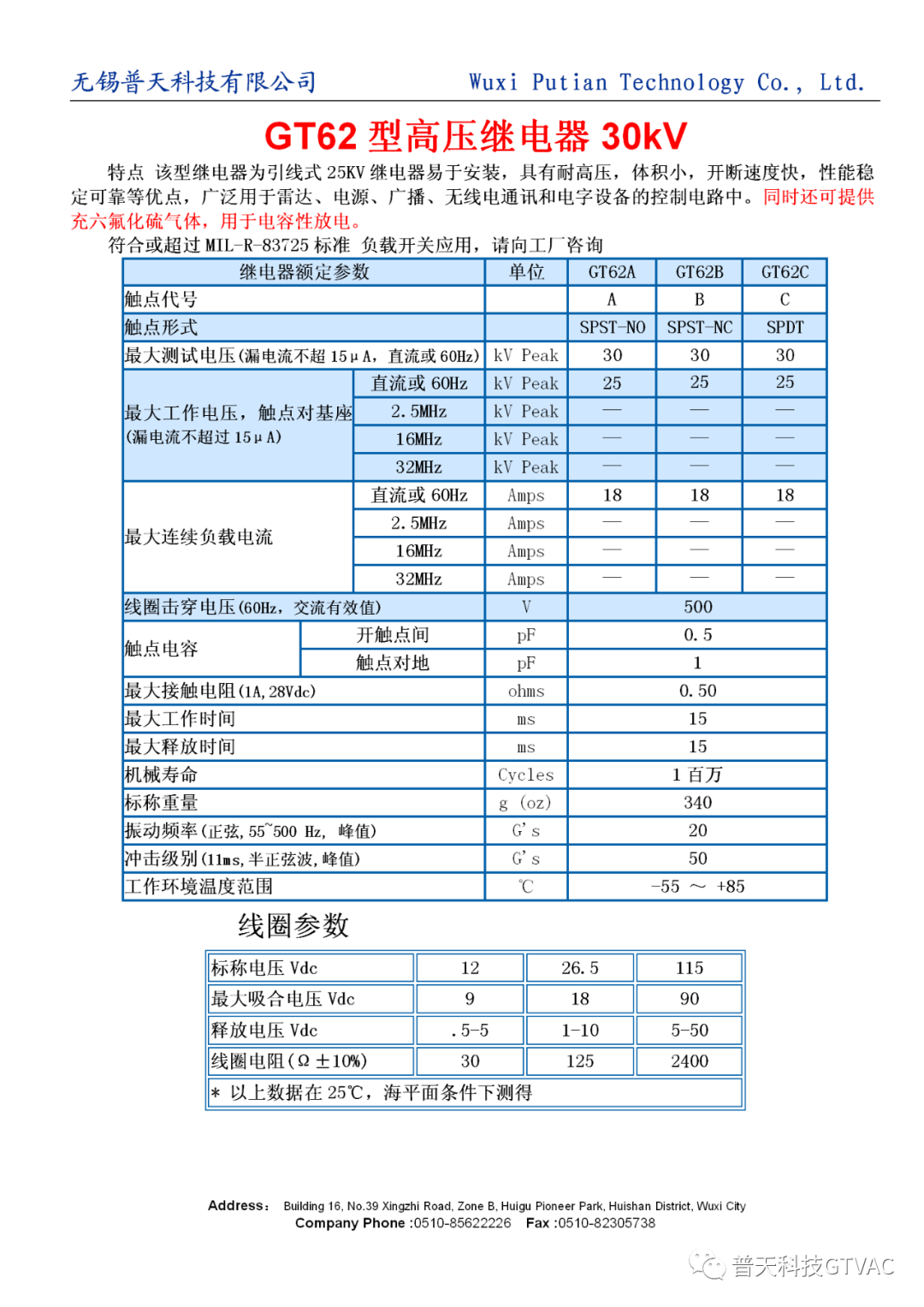

Specifications︰	Relay rated parameters Company GT62A GT62B GT62C Contact code A B C Contact form SPST-NO SPST-NC SPDT Maximum test voltage (leakage current not exceeding 15 μ A. DC or 60Hz) kV Peak thirty thirty thirty Maximum operating voltage, contact to base (leakage current not exceeding 15 μ A) DC or 60Hz kV Peak twenty-five twenty-five twenty-five 2.5MHz kV Peak — — — 16MHz kV Peak — — — 32MHz kV Peak — — — Maximum continuous load current DC or 60Hz Amps eighteen eighteen eighteen 2.5MHz Amps — — — 16MHz Amps — — — 32MHz Amps — — — Coil breakdown voltage (60Hz, AC effective value) V five hundred Contact capacitance Between open contacts pF zero point five Contact to ground pF one Maximum contact resistance (1a, 28vdc) ohms zero point five zero Maximum working time ms fifteen Maximum release time ms fifteen Mechanical life Cycles 1 million Nominal weight g (oz) three hundred and forty Vibration frequency (sinusoidal, 55~500 Hz, peak) G's twenty Impact level (11ms, half sine wave, peak) G's fifty Operating ambient temperature range ℃ - 55 ～ +85
Advantages︰	Features this type of relay is a lead 25kV relay, which is easy to install. It has the advantages of high voltage resistance, small size, fast breaking speed, stable and reliable performance. It is widely used in the control circuits of radar, power supply, broadcasting, radio communication and electronic equipment. At the same time, it can also provide sulfur hexafluoride gas for capacitive discharge. Consult factory for load switch applications that meet or exceed mil-r-83725
Export Markets︰	Widely used in control circuits of radar, power supply, broadcasting, radio communication and electronic word equipment
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later
