GT61 HV Relays 40kV

Model No.︰	GT61型
Brand Name︰	GT61 HV Relays
Minimum Order︰	10 pc

Total 120 Related Items

Product Description

Features

this type of relay is a lead type 35kV relay, which is easy to install. It has the advantages of high voltage resistance, small size, fast breaking speed, stable and reliable performance, and is widely used in the control circuits of radar, power supply, broadcasting, radio communication and electronic equipment.

Consult factory for load switch applications that meet or exceed mil-r-83725

Price Terms︰	FOB Wuxi
Specifications︰	Coil parameters Nominal Voltage VDC twelve twenty-six point five one hundred and fifteen Maximum pull in Voltage VDC nine eighteen ninety Release Voltage VDC . 5-5 1-10 5-50 Coil resistance (Ω± 10%) thirty seventy-five two thousand *The above data are measured at 25 ℃ and sea level
Advantages︰	Relay rated parameters Company GT61A GT61B GT61C Contact code A B C Contact form SPST-NO SPST-NC SPDT Maximum test voltage (leakage current not exceeding 15 μ A. DC or 60Hz) kV Peak forty forty forty Maximum operating voltage, contact to base (leakage current not exceeding 15 μ A) DC or 60Hz kV Peak thirty-five thirty-five thirty-five 2.5MHz kV Peak — — — 16MHz KV Peak — — — 32MHz KV Peak — — — Maximum continuous load current DC or 60Hz Amps ten ten ten 2.5MHz Amps — — — 16MHz Amps — — — 32MHz Amps — — — Coil breakdown voltage (60Hz, AC effective value) V five hundred five hundred Contact capacitance Between open contacts pF Contact to ground pF Maximum contact resistance (1a, 28vdc) ohms one Maximum working time ms fifteen Maximum release time ms fifteen Mechanical life Cycles 1 million Nominal weight g (oz) 336 (12) Vibration frequency (sinusoidal, 55~500 Hz, peak) G's ten Impact level (11ms, half sine wave, peak) G's twenty Operating ambient temperature range ℃ - 55 to +85
Export Markets︰	In the control circuit of radar, power supply, broadcasting, radio communication and electronic equipment.
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later

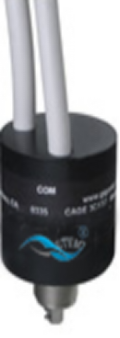

Product Image
