GT16AB HV Relays

Typical application place of relay
• RF Applications: • cas-gtvac's high voltage vacuum relay plays a crucial role in applications requiring high energy and low RF loss, including:
• vapor deposition during semiconductor wafer processing
• radio antenna adjustment matching circuit
• t/r (transmit / receive) conversion
• pulse forming network
• ion input
• TWT (traveling wave tube) power supply
• MRI (nuclear magnetic resonance imaging) power supply
• radar system
• safety inspection system

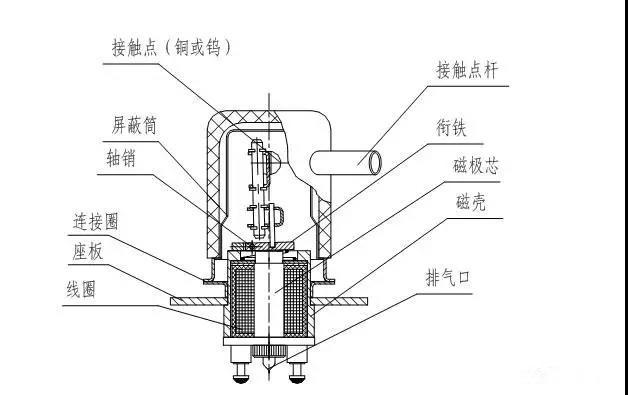

• characteristics of vacuum high voltage relay •
The vacuum high-voltage relay has high electrical resistance, large rated carrying current and conversion current, small electrical wear of contacts, long service life, small and stable contact resistance, and low ohmic noise. Relatively speaking, the vacuum relay has small volume, small inter pole distributed capacitance and inductance, small contact opening distance, low excitation power, and fast breaking speed. The sealed contacts are not affected by the surrounding air pressure, moisture, sand dust, or explosive gas, and can work in harsh environments.
• purpose •
Vacuum high-voltage relay is widely used in radio communication equipment, radar, power supply, broadcasting and other electronic equipment, such as antenna coupling, tap change of RF coil, transceiver conversion of antenna, conversion in pulse forming network, quick switch of high-voltage and high-power circuit; Automatic grounding (leakage) protection. In addition, it can also be used in corrosive or explosive environments.
