Smallest size double throw, 5 kV, RF rated relay with it's current ratings
Very low profile, even when wires connected
Vacuum dielectric for low current power switching
Low coil power
Meets or exceeds standards set in MIL-R-83725
Price Terms︰
FOB Wuxi
Specifications︰

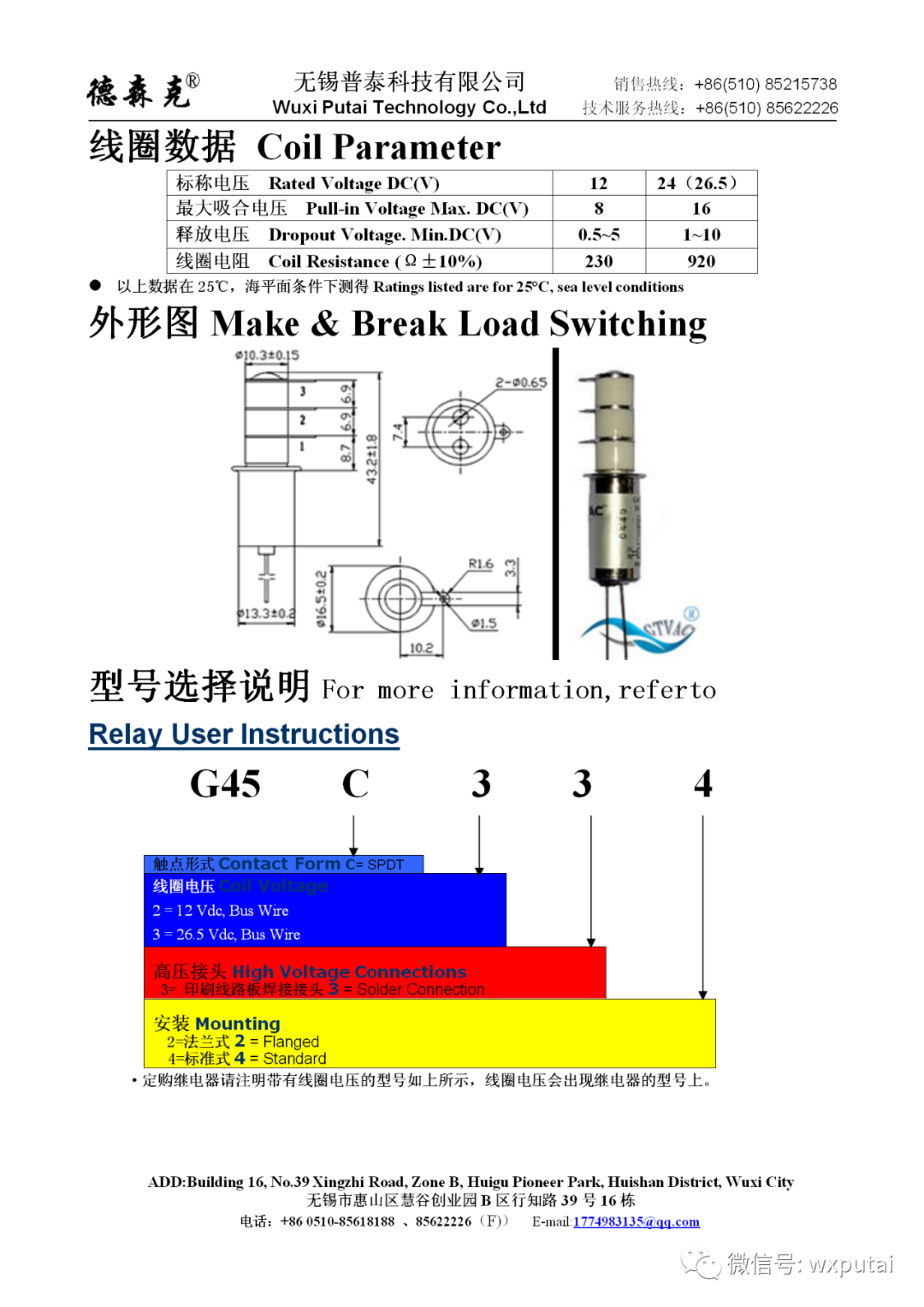

Coil Ratings Nominal, Volts dc 12 26.5 Pick-up, Volts dc, Max 8 16 Drop-Out, Volts dc .5-5 1-10 Coil Resistance(Ω±10%) 230 920 * Ratings listed are for 25°C, sea level conditions
Advantages︰
Product Specification Contact & Relay Ratings Units GT45C Contact Form C Contact Arrangement SPDT Test Voltag,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) kV Peak 6 Rated Operating Voltage,(kV,Peak), Contacts & to Base (15 μA Leakage Max.) dc or 60Hz kV Peak 5 2.5MHz kV Peak 4.5 16MHz kV Peak 3.5 32MHz kV Peak 2.8 Continuous Current, Carry Max dc or 60Hz Amps 20 2.5MHz Amps 16 16MHz Amps 10 32MHz Amps 8 Coil Hi-Pot (V RMS, 60 Hz) V 500 Capacitance Across Open Contacts pF 1.5 Contacts to Ground pF 2 Resistance, Contact Max @ 1A, 28Vdc ohms 0.05 Operate Time, Max ms 10 Release Time, Max ms 10 Mechanical Life Cycles 2 million Weight g(02) 21(0.75) Vibration, Sine (10-2000 Hz Peak) G's 10 Shock, 1/2 Sine11ms (Peak) G's 30 Operating Temperature Ambient °C -55 ～ +125
