Cx1159 pulse hydrogen thyratron

Model No.︰	CX1159脉冲氢闸流管
Brand Name︰	GTVAC
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	1 pc

Total 26 Related Items

Product Description

Cx1159 pulse hydrogen thyratron is mainly used for high-power pulse modulation. As the pulse power supply of magnetron, it is used as pulse switch in various radio equipment. With the continuous promotion of medical accelerator, its application is more and more extensive.

Specifications︰	Basic parameters effect High speed pulse switch Hot wire and generator voltage (UF) 6.3V Hot wire current (if) 18-25A Peak positive anode voltage (HA) 33kV Peak anode current (Î a) 1000A Average anode current (Ï a) 1.25A Anode current width（ τ ai） three μ s No load gate voltage (ug1p) 300-1000V On load second grid bias voltage (ug2l) - 50--150V Pulse repetition rate (FCP) 430Hz Rising rate of anode current (D Î a/dt) 5000A/ μ s Grid voltage rise rate (dugp/dt) — Power factor (PB) fourteen × 109V A Hz Time jump（ Δ tzT） 5ns Ambient temperature (T) - 55-+85℃ Grid obstruction — Installation method Pipe bottom insertion No load two grid voltage (ug2p) 200-1000V
Advantages︰	Cx1159 pulse hydrogen thyratron is mainly used for high-power pulse modulation. As the pulse power supply of magnetron, it is used as pulse switch in various radio equipment. With the continuous promotion of medical accelerator, its application is more and more extensive.
Export Markets︰	It is mainly used for high-power pulse modulation. As the pulse power supply of magnetron, it is used as pulse switch in various radio equipment
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later

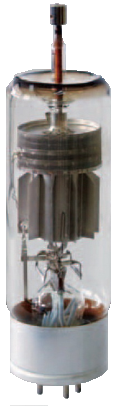

Product Image
