Vc-307sf electronic tube series cermet structure, thorium tungsten carbide maximum power water-cooled triode, with anode dissipation of 30kW and maximum working frequency of 30MHz. It is mainly used in industrial high-frequency heating oscillator.
Specifications︰
Product specifications Model DZCF2014/35 Rated working voltage (kV) thirty Peak current (KA) two hundred Quantity of electricity (c) ten Triggering energy (J) 0.06-1.2 Triggering voltage (kV) 0.3-15 Inductance (Uh) < zero point one Minimum working voltage at gap Min Working Voltageacross Mai Gap(V) < fifty Voltage drop of tube (V) < fifty Cutoff current (a) < ten Max working frequency (kHz) ten Operating life (Times) > one hundred and four Trigger delay (US) zero point zero eight Dispersion of delay (US) < zero point zero two Outline dimensions (mm) Ф sixty-nine × one hundred and fifty-five Weight (kg) one point five zero Note 1: the typical time is the time between the trigger current reaching 90% of the trigger breakdown current and the anode reaching the maximum current when the working voltage is 10-30kv.
Advantages︰

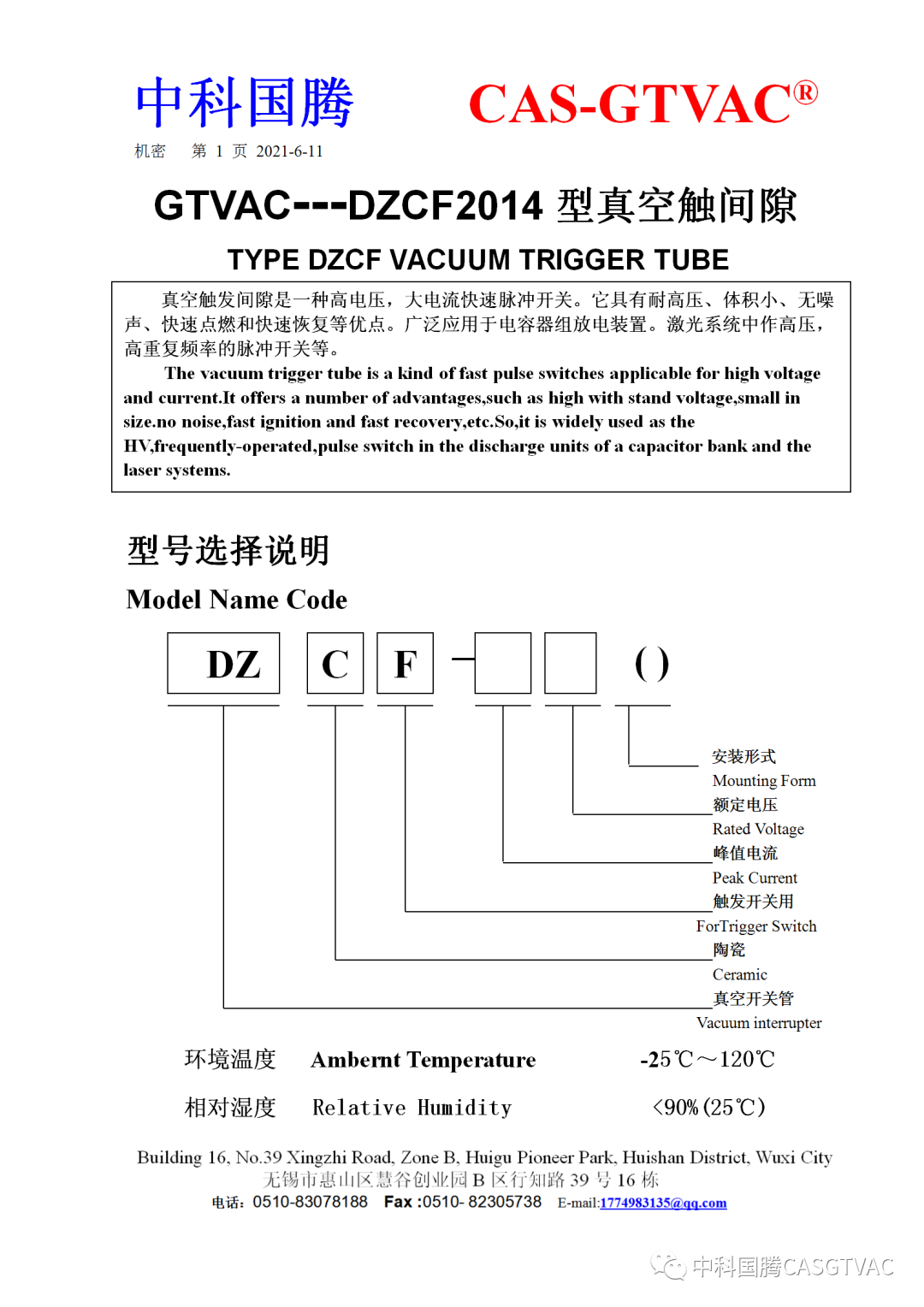

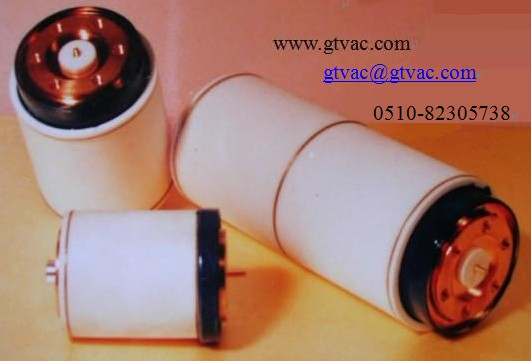

The vacuum trigger tube is a kind of fast pulse switches applicable for high voltage and current.It offers a number of advantages,such as high with stand voltage,small in size.no noise,fast ignition and fast recovery,etc.So,it is widely used as the HV,frequently-operated,pulse switch in the discharge units of a capacitor bank and the laser systems.
Export Markets︰
It is widely used in capacitor bank discharge devices. High voltage and high repetition rate pulse switches are used in the laser system.
