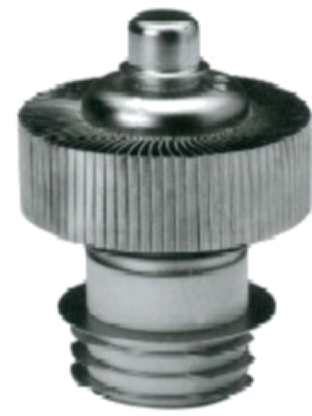

Vt4cx1000a beam power tetrode

Model No.︰	VT4CX1000A型
Brand Name︰	GTVAC
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	-

Total 26 Related Items

Product Description

Vt4cx1000a electronic tube is an oxide cathode, forced air cooling, cermet structure and beam power quadrupole. The maximum plate consumption is 1000W. Because of its high gain, it can be used as a class Ab1 RF linear amplifier or audio amplifier. When the rated maximum anode voltage is 3KV, it can generate 1630w peak pack output power. Two vt4cx1000a tubes work in class Ab1 and can produce 3260w audio power output. It can be interchanged with 4cx1000a electronic tube produced by eimac company of the United States.

Specifications︰

1、 Characteristic parameters
Filament voltage 6±0.3V Filament current 9A
Transconductance (when ia=1.0adc) 37mA/V Net weight 768g
Maximum operating frequency 110MHz Maximum outside diameter 85.5mm
Inter electrode capacitance (cathode grounding) input 81pF
output 11.8pF
transconductance 0.015pF
Inter pole capacitance (first and second grid grounding) input 35.5pF
output 12pF
Cross circuit capacitance 0.04pF
Installation method Any direction Maximum height 122mm
Cooling mode Forced air cooling
Maximum operating temperature of sealing joint and anode surface 250℃
2、 Limit application data
DC anode voltage 3000V DC secondary grid voltage 400V
DC anode current 1.0A Anode dissipation power 1000W
Two grid dissipative power 12W One grid dissipation power 1.0W
3、 Typical operating conditions
DC anode voltage two thousand two thousand and five hundred 3000Vdc
DC secondary grid voltage three hundred and twenty-five three hundred and twenty-five 325Vdc
DC grid voltage - sixty - sixty - 60Vdc
Zero signal DC anode current two hundred and fifty two hundred and fifty 250mAdc
Single tone anode current eight hundred and ninety eight hundred and eighty-five 875mAdc
Double tone anode current six hundred and forty-five six hundred and fifty 635mAdc
Zero signal two gate current eight six 5mAdc
Single tone two gate current thirty-five thirty-five 35mAdc
Two tone two gate current ten eight 8mAdc
Anode output power nine hundred and thirty one thousand and three hundred 1630W
Audio power amplifier or modulator class Ab1 grid excitation (sine wave, dual transistor)
DC anode voltage two thousand two thousand and five hundred 3000Vdc
Secondary grid voltage three hundred and twenty-five three hundred and twenty-five 325Vdc
Primary grid voltage - sixty - sixty - 60Vdc
Zero signal anode current five hundred five hundred 500mAdc
Maximum signal anode current one point seven eight one point seven seven 1.75mAdc
Zero signal two gate current sixteen twelve 10mAdc
Maximum signal second gate current seventy seventy 70mAdc
Anode output power one thousand eight hundred and sixty two thousand and six hundred 3260W
Load resistance two thousand and forty two thousand eight hundred and fifty 3860Ω
