1000A series ZLJ contactor

Model No.︰	1000A系列ZLJ型
Brand Name︰	GTVAC
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	10 pc

Total 23 Related Items

Product Description

1. The product coil adopts positive and negative pulse excitation (1 and 2 ends) for 200ms ≤ t ≤ S. the coil cannot be continuously energized for a long time. The operating frequency shall not exceed 6 times per minute. The pulse shall be square wave. The positive pulse closes the contact and the negative pulse opens the contact. After the coil is de energized, the contact state of the contactor is maintained by the permanent magnet in the product;
2. For products with three terminals, the coil can also be excited by two positive pulses. The excitation time is 200ms ≤ t ≤ 1s. The coil cannot be continuously energized for a long time, and the operating frequency shall not exceed 6 times per minute. The pulse shall be square wave. When positive pulses are applied at terminals 1 and 3, the main contact is closed. When positive pulses are applied at terminals 2 and 3, the main contact is disconnected, and the coil is de energized, the contact state of the contactor is maintained by the permanent magnet in the product.

Price Terms︰	FOB Wuxi
Specifications︰	order number Parameter name Product code 1000A series ZLJ contactor one Coil rated voltage (V DC) See product list two Coil current at 20 ℃ rated voltage (a) See product list three Maximum current of 20 ℃ cold starting coil (a) See product list four Rated voltage of main contact circuit (V DC) forty-eight five Rated load current of main contact circuit (a) one thousand six Cold operating voltage (V) at (20 ± 5) ℃ See product list seven Power supply voltage fluctuation range ± 20% rated voltage eight Contact voltage drop of main contact under 100A load Not more than 80mv nine Maximum making and breaking capacity of main contact Make and break once, 4 times the rated load current, and the power on time is 5ms ten Maximum action time under rated voltage (MS) (coil without suppression) Pull in thirty release thirty eleven Maximum contact opening bounce time (MS) three twelve Electrical strength 1000V AC，50Hz，1min thirteen Electrical life（ τ＝ 0.001s) (Times) 10,000 fourteen Job specification continuity Remarks: products with auxiliary contact, auxiliary contact load 48V DC, 2A or 24V DC, 5A
Advantages︰	3、 Service conditions Serial number entry name Product code 1000A series ZLJ contactor one ambient temperature （-25～+60）℃ two relative humidity + 98% at 20 ℃ three Vibration at fixed position 1～50Hz four Impact acceleration 30m/s2 five Installation position arbitrarily
Export Markets︰	use to start,stop,adjust and steer the accumulator-driven vehicles,also may be widely applied as power switching and on UPS in fields of traction,mineral machinery,petrochemical,metallurgy & marine,telecommunication and computer
Payment Details︰	Delivery upon payment
Min Order︰	10
Ship Date︰	two weeks later

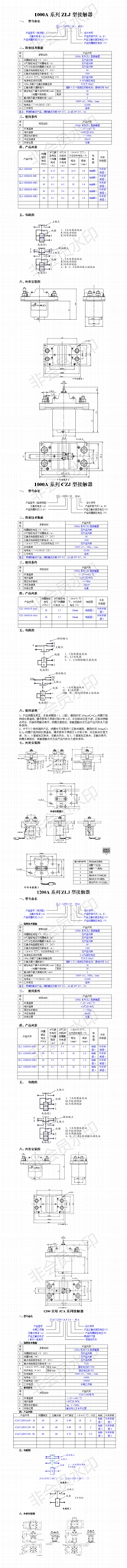

Product Image
