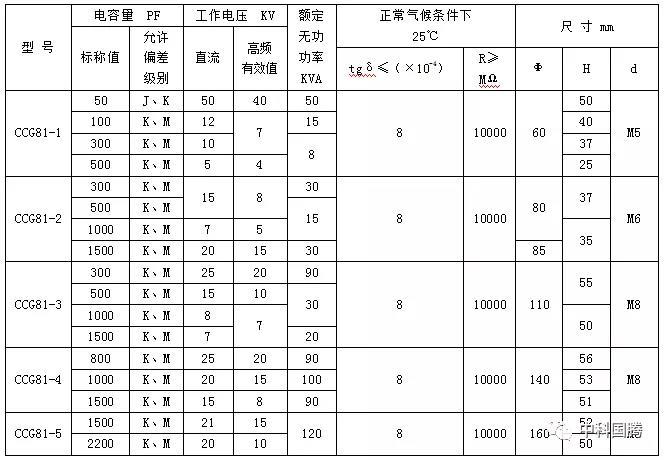

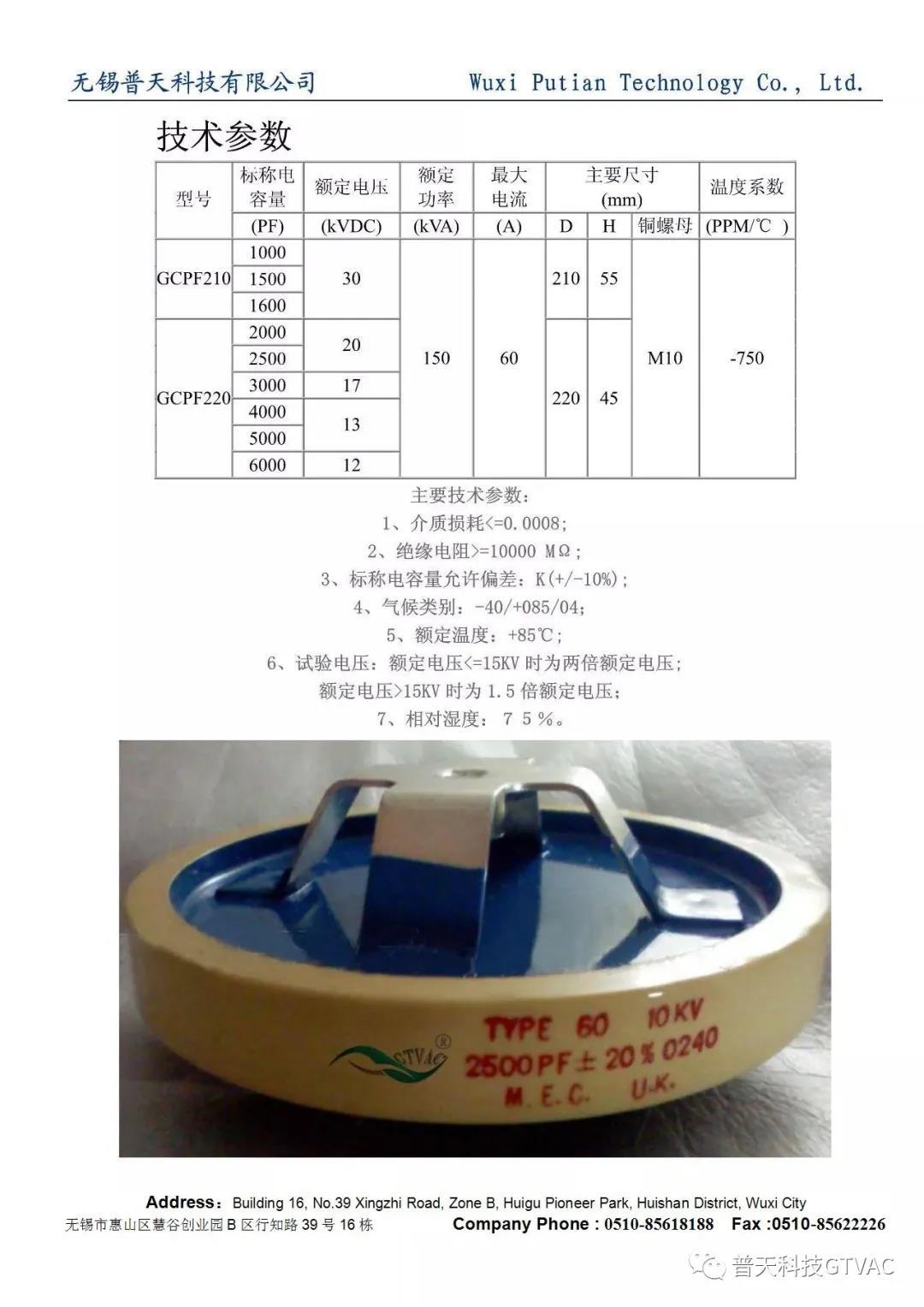

Plate high - power ceramic capacitor

Widely used in: radio communication, radio and television transmitters, radar engineering, aerospace satellites and other fields; And high-frequency welding, heating, high-power power supply equipment and other industrial fields; Together with other electronic components, it is used to establish slot circuit, coupling, bypass, tuning, filtering, DC isolation and feed circuit, so as to improve equipment power factor and overvoltage protection.
Functional characteristics of high power ceramic capacitor
1. the high-power ceramic capacitor is easy to operate: it is designed as a "fool type man-machine interface". As long as the external wiring is correct and the address of the slave is selected, it can run after being powered on without any setting.
2. high power ceramic capacitor has strong anti-interference ability: weak current and strong current are separated to prevent the primary line from interfering with the secondary signal line, which greatly improves the anti-interference ability of the whole machine.
3. capacitor protection against reverse transmission of reactive power: permanent fault trip protection device is adopted. Once the intelligent capacitor has an irreparable fault, it will automatically trip and exit the power grid, so as to prevent the reverse transmission of reactive power to the power grid due to the fault and ensure the normal operation of the reactive power compensation system.
4. the capacitor switching inrush current is small: the advanced zero crossing switching technology is adopted to limit the input inrush current to less than 2ie times, greatly reducing the impact on the power grid.
5. the capacitor has self inspection function: it can simulate automatic operation switching. The capacitor cabinet manufacturer can conduct factory test through the self inspection function without special equipment.
6. it is simple to connect multiple high-power ceramic capacitors in series: the operation of the host will not be affected no matter whether the slave is disconnected or connected. As long as the slave is connected, it will be connected by the host and enter the compensation column immediately without any conditions. In this way, the multi-stage connection of intelligent capacitor is greatly simplified. In addition to the above-mentioned functional features, the intelligent capacitor integrates the company's unique patented technologies and mature production processes such as composite switches, controllers and capacitors, so that it has the following unique and powerful functional advantages to truly realize intelligence.
7. good heat dissipation of the capacitor: there is a certain gap between the control part and the capacitor, which will not affect the top heat dissipation of the capacitor due to the installation of the control part.
8. the protection function of ceramic capacitor is complete: in addition to the permanent fault tripping protection device, there are overvoltage, undervoltage, overcurrent, phase loss, over-temperature protection and explosion-proof pressure protection device in the capacitor.
9. long service life of capacitor: Polypropylene metal film zinc aluminum edge thickening technology is adopted, which has good self-healing performance, low capacity attenuation, strong impact resistance and long service life.
10. convenient maintenance of capacitor: the control part is separated from the capacitor to facilitate maintenance. If the capacitor fails, the user can replace it by himself.
